GENERAL CHARACTERISTICS

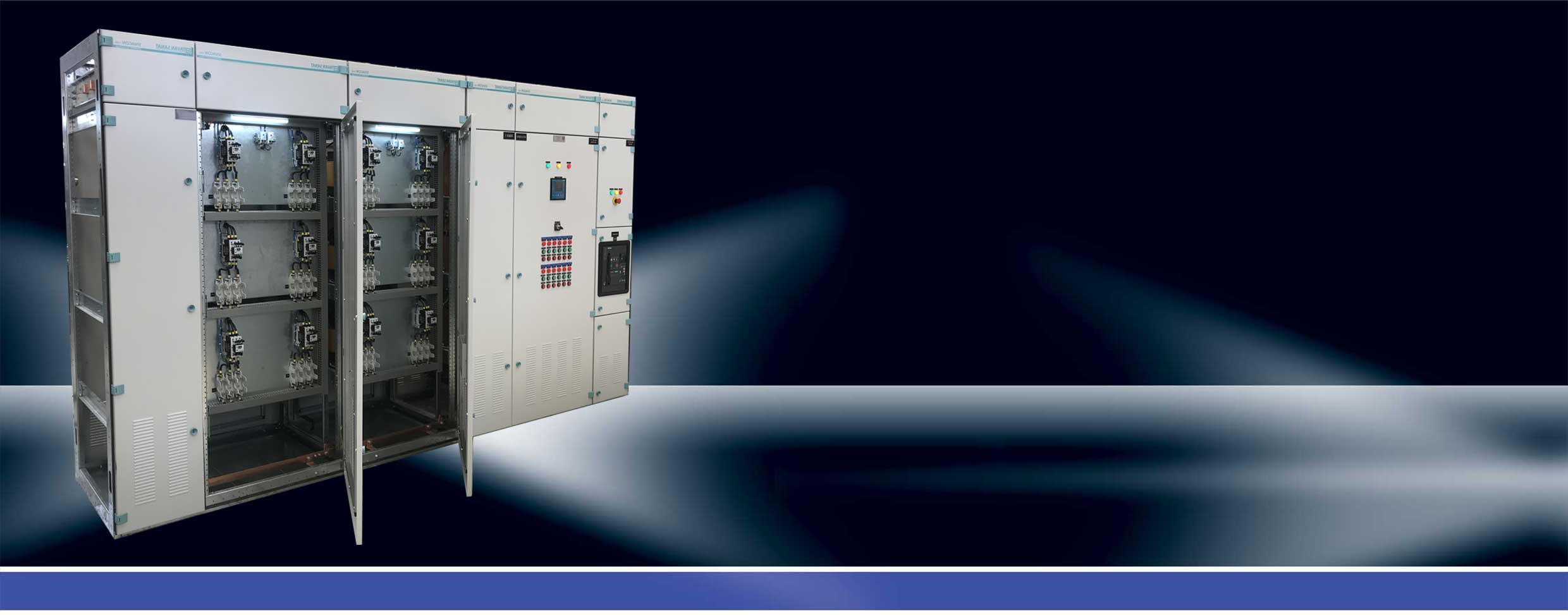

Tavan Sanat Low Voltage capacitor banks are composed of the following elements:

• • High rupturing capacity (HRC) fuses connected to a busbar system.

  • Contactors specially adapted to the work with capacitors.

  • Inrush current limiting inductances.

  • Fast discharge resistors.

  • Low losses power capacitors.

  • Reactive power controllers.

  • Terminals for neutral and ground conductors.

  • Metal cabinet containing all the switchgear.

ADVANTAGES

• • Equipments wired and tested at works, full finished and supplied with all control and safety devices.

  • Easy transportation and installation due to their light weigh.

  • Easy selection of the most appropriate cos φ to avoid penalty charges on tariffs.

  • Long life and high reliability, thank to the use of self-healing and low losses capacitors.

  • Wide range of power (from 5 to 1600 kvar, 440 V) with standard equipments for immediate delivery.

  • Option of including various accessories.

SPECIAL EQUIPMENT

On request, automatic capacitor banks can be produced to customers special requirements. Among the different possibilities are the following:

• Other voltages and frequencies.

• Capacitor banks with different degrees of protection.

• Capacitor banks for outdoor installation.

• Working program 1:2:4:4:, 1:2:4:8:, 1:1:2:2:.

• Fixed step (for transformer compensation).

• Higher powers than the above stated.
